Explore Avalanche Trailers

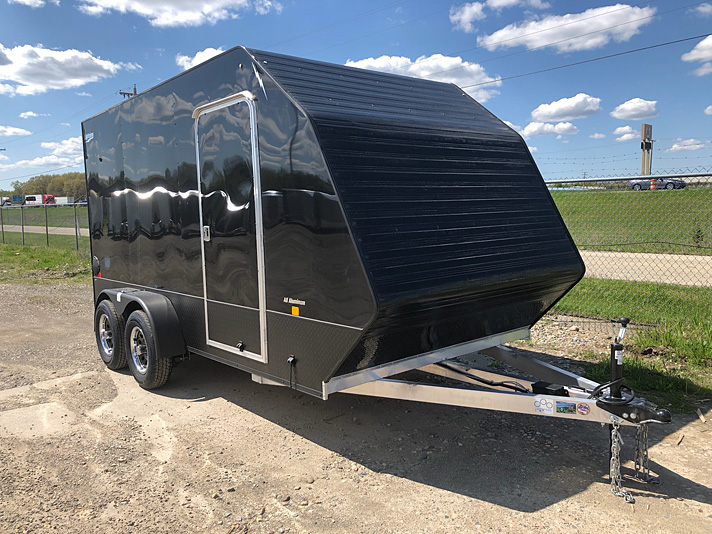

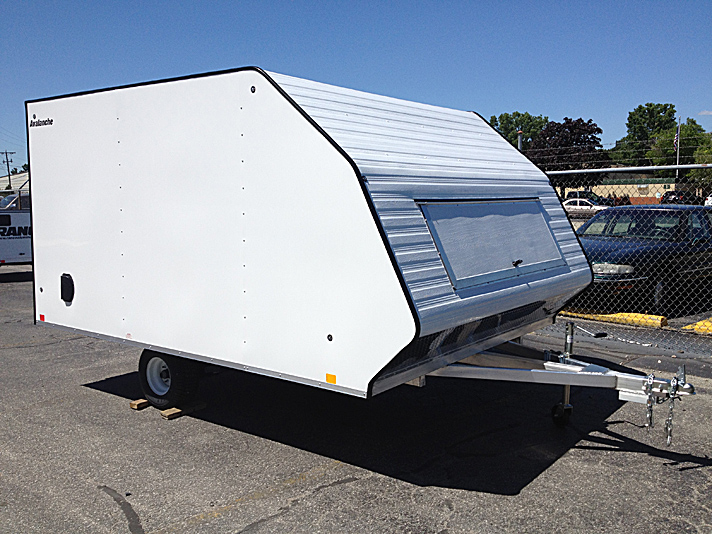

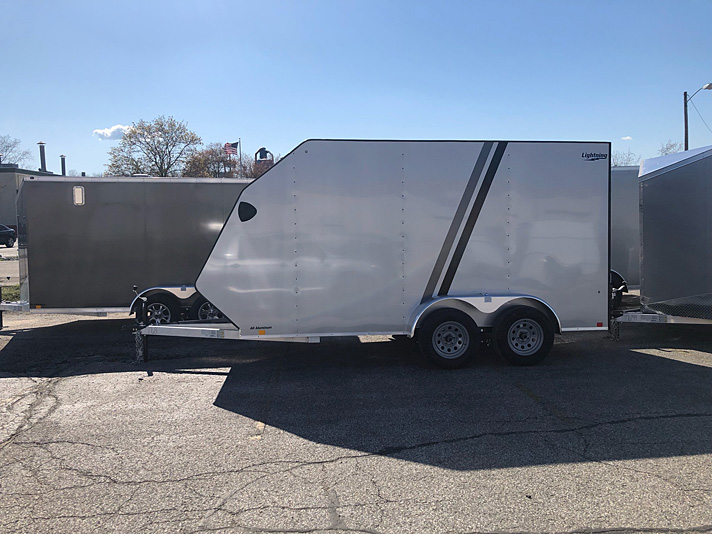

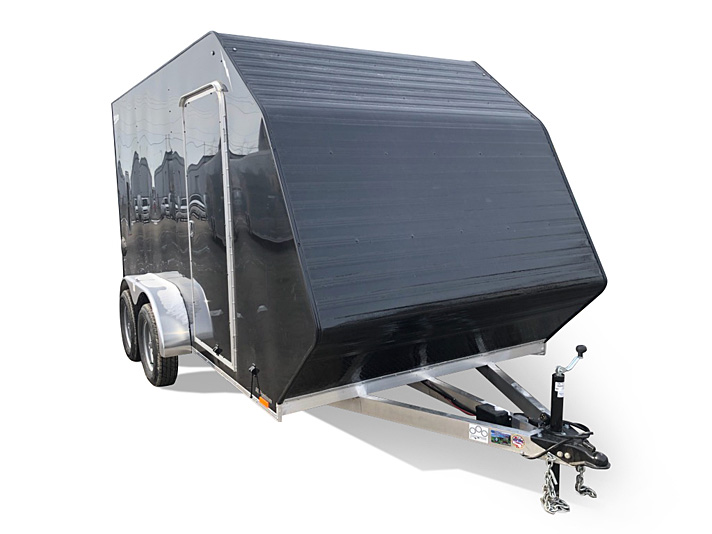

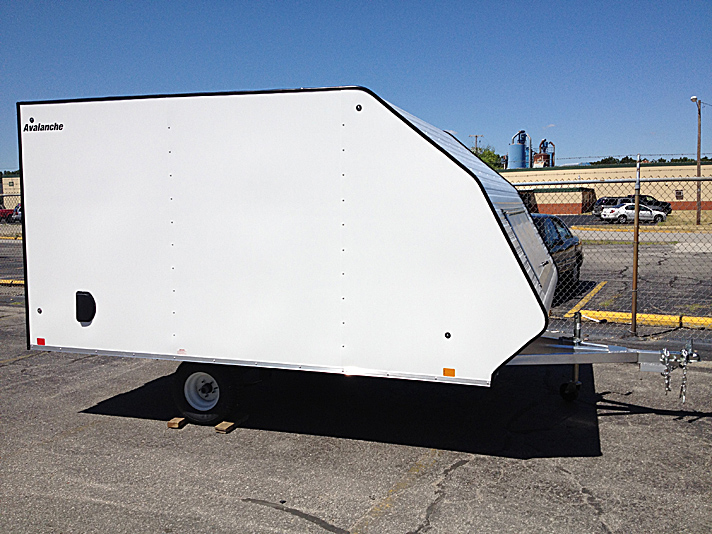

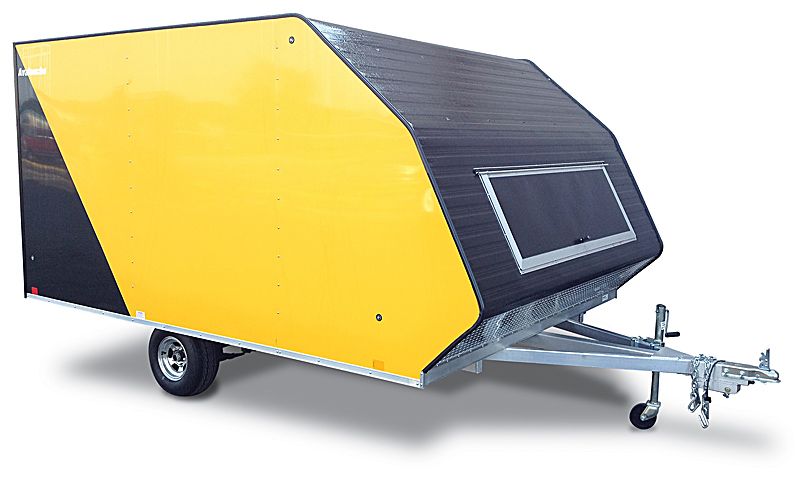

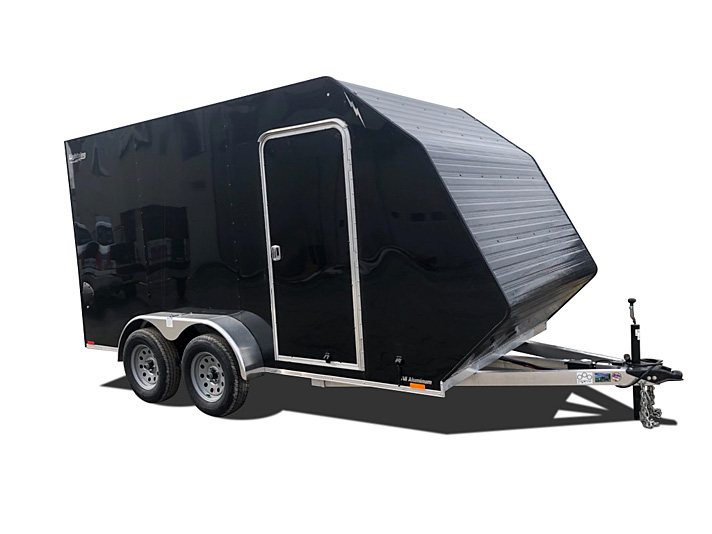

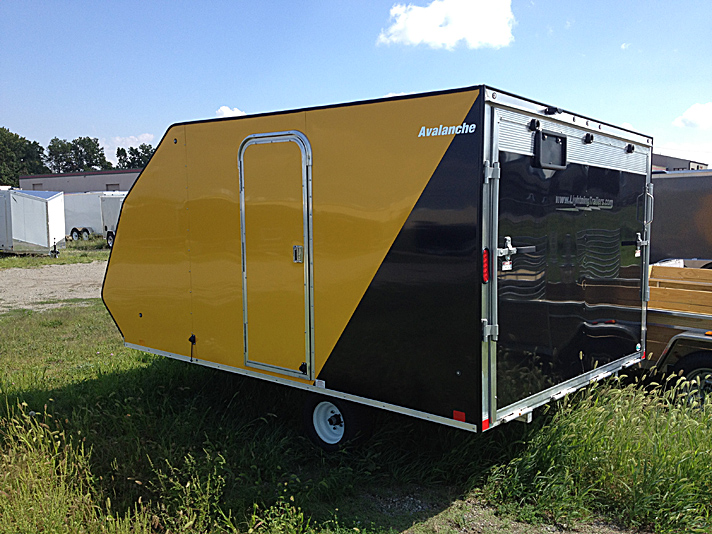

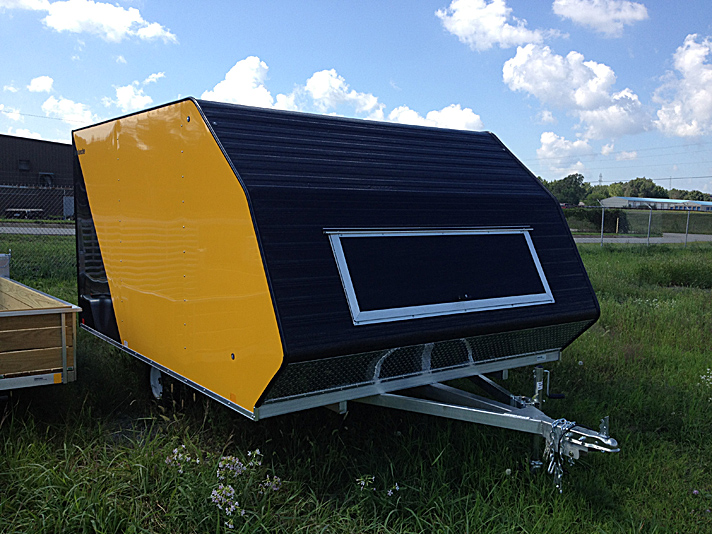

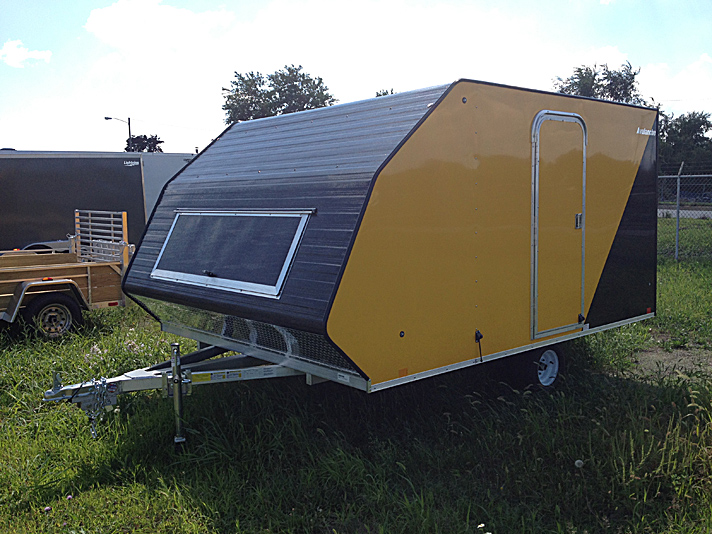

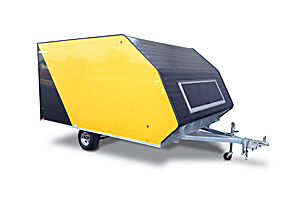

A two snowmobile trailer by design, Lightning Avalanche models will meet your needs during all four seasons. Available in both 11’ and 13’ models and single and tandem axle configurations, we have models that accommodate various sized snowmobiles. The Avalanche gives the look and value of its predecessor, the “tilt trailer with clamshell cover,” while giving you the ease of use and durability of an enclosed trailer.
.jpg)
.jpg)
.jpg)
-
- All-Aluminum Frame Construction
- Spring Suspension w/ EZ Lube Hubs
- 1-Year Warranty
- 5/10 Year Axle Warranty
- 2-Year Advantage Roadside Assistance
- LED Lighting
- Tongue Jack
- Aluminum Stone Guard
- Powder Coated Bar Locks (Ramp Doors)
- Tie Down Bar (5.5' & 8.5' Wide Models)
- Fold Down Stab Jacks

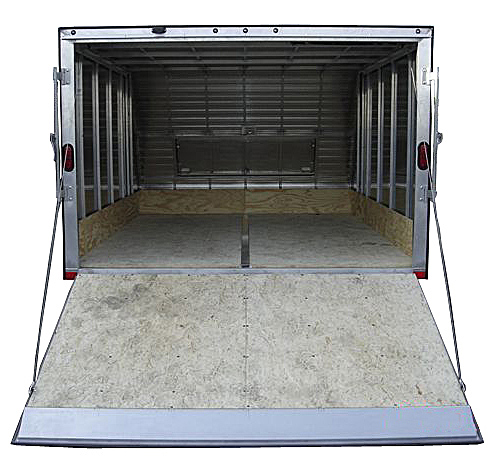

- Flush Flap Ramp Extension
Specifications
| LTA5511SA | LTA5513SA | LTA714TA2 | LTA716TA2 | LTA811SA | LTA811SAE | LTA813SA | LTA813SAE | LTA813TA | |
| GVWR: | 2990 lb. | 2990 lb. | 7000 lb. | 7000 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 2990 lb. | 4400 lb. |
| Payload Capacity: | 2200 | 2130 | 5475 | 5325 | 1940 | 1890 | 1810 | 1760 | 3050 |
| Exterior Length: | 15' 6" | 17' 6" | 18' 9" | 20' 9" | 15' 4" | 15' 4" | 17' 4" | 17' 4" | 17' 4" |
| Exterior Width: | 7' 3" | 7' 3" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" | 8' 6" |
| Exterior Height: | 7' 0" | 7' 0" | 8' 4" | 8' 4" | 7' 7" | 7' 7" | 7' 7" | 7' 7" | 7' 7" |
| Interior Length: | 10' 8" | 12' 8" | 13' 8" | 13' 8" | 10' 8" | 10' 8" | 12' 8" | 12' 8" | 12' 8" |
| Interior Width: | 5' 2" | 5' 2" | 6' 7" | 6' 7" | 8' 1" | 8' 1" | 8' 1" | 8' 1" | 8' 1" |
| Interior Height: | 5' 2" | 5' 2" | 6' 7" | 6' 7" | 5' 2" | 5' 2" | 5' 2" | 5' 2" | 5' 2" |
| Rear Door Type: | Rear Ramp | Rear Ramp | Rear Ramp | Rear Ramp | Rear Ramp | Rear Ramp | Rear Ramp | Rear Ramp | Rear Ramp |
| Rear Door Width: | 4' 10" | 4' 10" | 6' 2" | 6' 2" | 7' 11" | 7' 11" | 7' 11" | 7' 11" | 7' 11" |
| Rear Door Height: | 5' 1" | 5' 10" | 6' 5" | 6' 5" | 5' 1" | 5' 1" | 5' 1" | 5' 1" | 5' 1" |
| Coupler Size: | 2" | 2" | 2 5/16" | 2 5/16" | 2" | 2" | 2" | 2" | 2" |
| Curb Weight: | 790 | 860 | 1525 | 1675 | 1050 | 1100 | 118 | 1230 | 1350 |
| Hitch Weight: | 80 | 90 | 160 | 170 | 110 | 110 | 120 | 130 | 140 |
| Hitch Height: | 16" | 16" | 16" | 16" | 22" | 22" | 22" | 22" | 22" |
| Platform Height: | 18 | 18 | 19 | 19 | 26 | 26 | 26 | 26 | 26 |
| Axle: | 1-3500 | 1-3500 | 2-3500 | 2-3500 | 1-3000 | 1-3000 | 1-3000 | 1-3000 | 2-2500 |
| Suspension: | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring | Spring |
| Brakes: | Optional | Optional | 4-10" Electric | 4-10" Electric | Optional | 2-10" Electric | Optional | 2-10" Electric | 4-10" Electric |
| Tires: | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST205/75R15 | ST145/R12 | ST145/R12 | ST145/R12 | ST145/R12 | ST145/R12 |
| Wheels: | Silver Steel | Silver Steel | Silver Steel | Silver Steel | Silver Steel | Silver Steel | Silver Steel | Silver Steel | Silver Steel |
| Main Frame: | 2" x 3" Tube | 2" x 3" Tube | 2" x 3" Tube | 2" x 4" Tube | 2" x 3" Tube | 2" x 3" Tube | 2" x 3" Tube | 2" x 3" Tube | 2" x 3" Tube |
| Floor: | 3/4" Engineered Wood | 3/4" Engineered Wood | 3/4" Engineered Wood | 3/4" Engineered Wood | 3/4" Engineered Wood | 3/4" Engineered Wood | 3/4" Engineered Wood | 3/4" Engineered Wood | 3/4" Engineered Wood |
| Walls: | 12" Kick Plate | 12" Kick Plate | 12" Kick Plate | 12" Kick Plate | 12" Kick Plate | 12" Kick Plate | 12" Kick Plate | 12" Kick Plate | 12" Kick Plate |
